FRAME · STEP D3 · 03 OF 8
03

Set the front carrier beam

Front carrier beam goes on first — the spine of the frame.

Set the front carrier beam — illustration

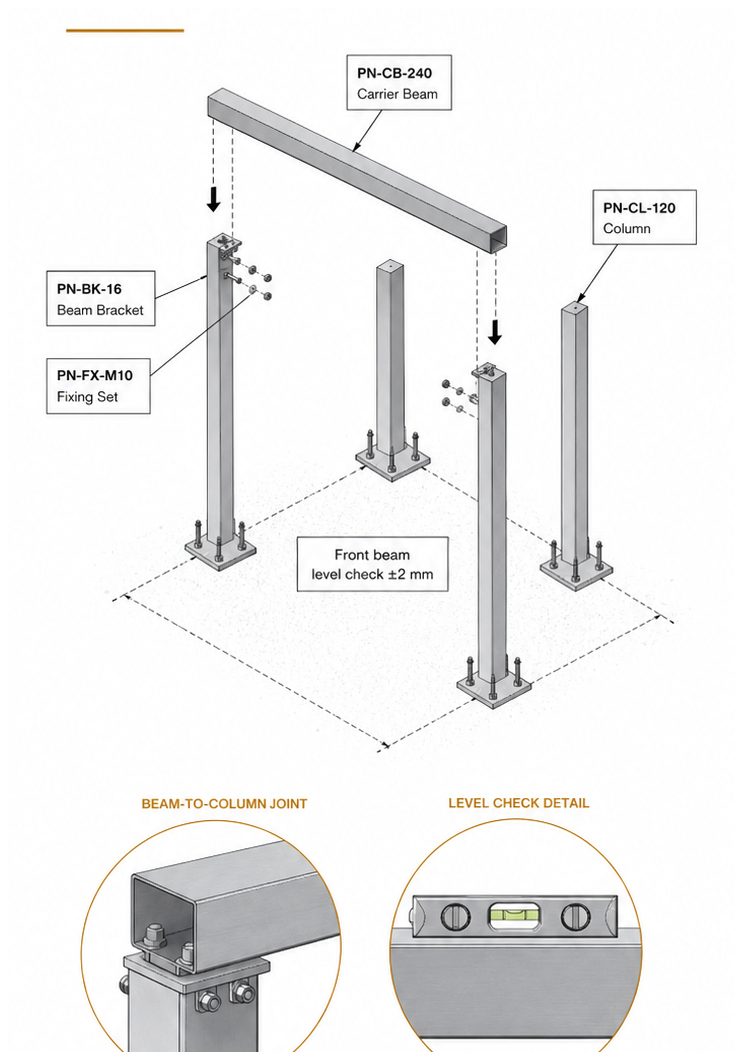

Fig. 03 — Set the front carrier beam

SUB-STEPS

  1. 1Lift the front carrier beam with two installers.
  2. 2Seat the beam onto the front column heads.
  3. 3Align fixing holes and insert the M10 fixing set.
  4. 4Tighten lightly on both ends.
  5. 5Verify level across the full width.
  6. 6Confirm equal overhang and alignment before tightening.

SPECIFICATIONS

  • Beam profile: PN-CB-240
  • Fastener set: M10 stainless fixing set
  • Level tolerance: ±2 mm
  • Install team: 2 installers
  • Tightening stage: preliminary

TIP

Start one side first, then support and align the opposite side before inserting bolts.

WATCH OUT

Do not force the beam into misaligned brackets.

TOOLS

Lift support, hex keys, spirit level, torque wrench

TIME

17 min

About step 3 of the Luxa Sereno 700 installation

Set the front carrier beam · FRAME · 8 step · Luxa Sereno 700 (bioclimatic pergola)

Front carrier beam goes on first — the spine of the frame.
