PRODUCT DATASHEET
Luxa Filo Roll Insect Screen
PRODUCT DATASHEET
Luxa Filo Roll Insect Screen

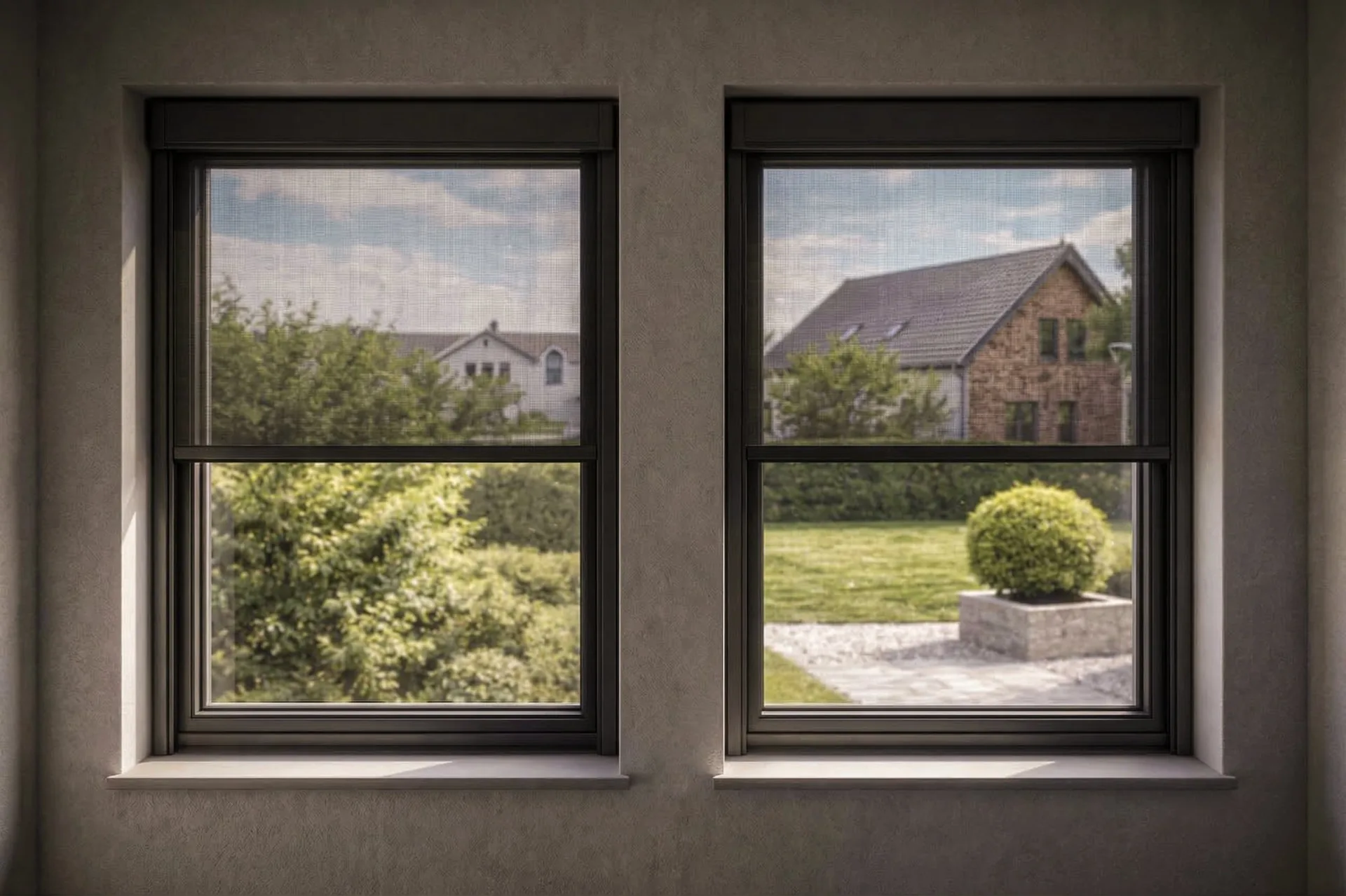

A roller insect screen with spring-loaded retraction — pull down for fresh air, the spring pulls it back when released.
Key features
- Retractable spring-loaded cassette
- Compact aluminium housing
- Flush-retract when not in use
- Aluminium guide rails
- Fiberglass mesh — max airflow
- Custom sizing for any window or door
- Powder-coated aluminium frame
- Tool-free mesh replacement
- Silent spring mechanism
- Any RAL colour available
Technical specifications
| Type | Roller cassette (retractable) |
| Frame Material | Powder-coated aluminium |
| Mesh Material | Fiberglass — UV resistant |
| Operation | Spring-loaded retraction |
| Housing | Compact aluminium cassette |
| Guide Rails | Aluminium side channels |
| Colour | Any RAL colour (powder coat) |
| Application | Windows, doors, French doors, balcony doors |
Standards & certifications
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-3 · Snow loads
- EN 1991-1-4 · Wind actions
- EN 1090-3 · Execution of aluminium structures
- EN 12020-2 · Aluminium extrusion tolerances
- Qualicoat Class 2 · TIGER Coatings powder coat
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
