PRODUCT DATASHEET

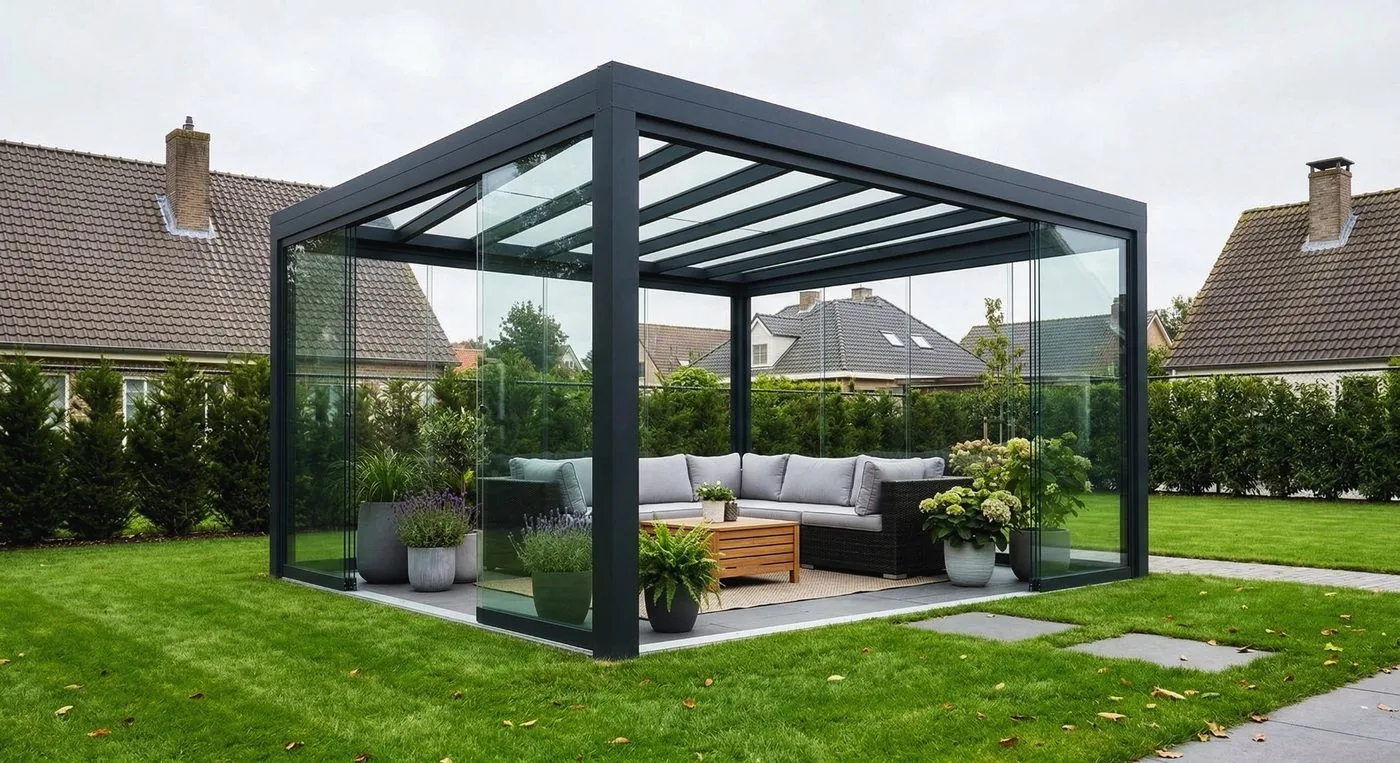

Luxa Vetra Cube Freestanding Veranda
PRODUCT DATASHEET
Luxa Vetra Cube Freestanding Veranda
A freestanding glass veranda standing on its own four (or six) aluminium pillars.
Key features
- Freestanding — own pillars
- No wall attachment needed
- Modern flat design
- Strong aluminium structure
- Single glazing compatible
- Insulated glass compatible
- 4 or 6 pillar configurations
- Four-season comfort
- TIGER Coatings powder coat
- Any RAL colour
- Reinforced carrier profile
- Ideal for gardens and open areas
Technical specifications
| Material | High-quality aluminium |
| Design | Flat veranda, freestanding (self-supporting pillars) |
| Glass Options | Single glazing or insulated glass |
| Pillar Configuration | 4-pillar standard, 6-pillar for larger spans |
| Max Area | 60 m² |
| Min Slope | 7% |
| Surface Finish | TIGER Coatings powder coat, any RAL colour |
| Carrier Profile | Reinforced — wind, water, dust resistant |
Standards & certifications
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-3 · Snow loads
- EN 1991-1-4 · Wind actions
- EN 1090-3 · Execution of aluminium structures
- EN 12020-2 · Aluminium extrusion tolerances
- Qualicoat Class 2 · TIGER Coatings powder coat
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
