PRODUCT DATASHEET
Luxa Vetra WG Wall-Mounted Veranda
PRODUCT DATASHEET
Luxa Vetra WG Wall-Mounted Veranda

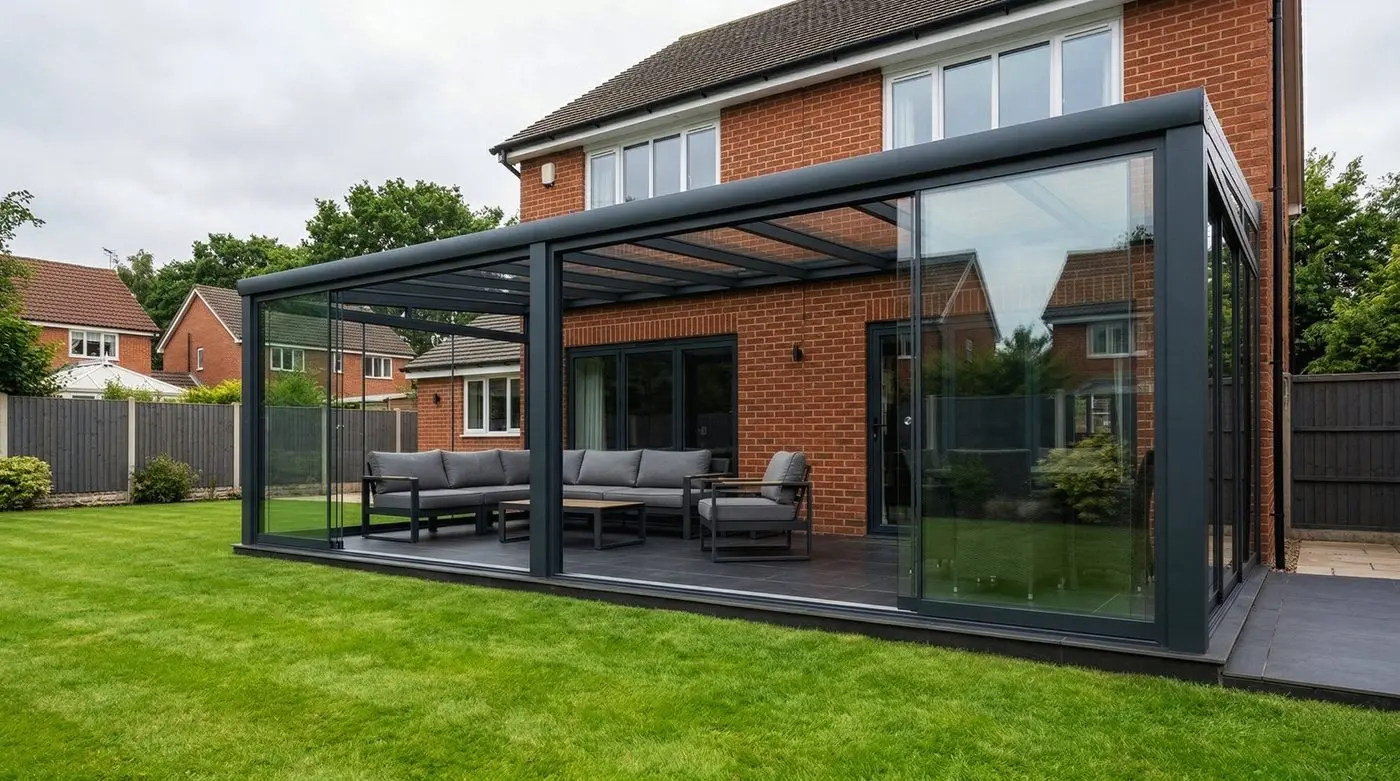

A wall-mounted glass veranda that turns your terrace into a four-season room.
Key features
- Wall-mounted installation
- Modern flat design
- Strong aluminium structure
- Single glazing compatible
- Insulated glass compatible
- Projections up to 4.5m
- Widths up to 5.5m (4-pillar)
- 6-pillar option for larger spans
- Four-season comfort
- TIGER Coatings powder coat
- Any RAL colour
- 90° corner connection
- Reinforced carrier profile
Technical specifications
| Material | High-quality aluminium |
| Design | Flat veranda, wall-mounted |
| Glass Options | Single glazing or insulated glass |
| Max Projection | 4.5 m |
| Max Width | 5.5 m (4-pillar), extendable with 6-pillar |
| Dimensions (X) | 2,000 – 12,060 mm |
| Dimensions (Y) | 1,000 – 5,000 mm |
| Max Area | 60 m² |
| Min Slope | 7% |
| Sizes | 3×3, 3×4, 3×5, 4×4, 4×5, 4×6 m |
| Max Expansion | 4.0 m |
| Surface Finish | TIGER Coatings powder coat, any RAL colour |
| Corner Connection | 90° waterproof aluminium connection |
| Carrier Profile | Reinforced — wind, water, dust resistant |
Standards & certifications
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-3 · Snow loads
- EN 1991-1-4 · Wind actions
- EN 1090-3 · Execution of aluminium structures
- EN 12020-2 · Aluminium extrusion tolerances
- Qualicoat Class 2 · TIGER Coatings powder coat
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
