TECHNICAL DATASHEET
Luxa Sereno 700
TECHNICAL DATASHEET
Luxa Sereno 700

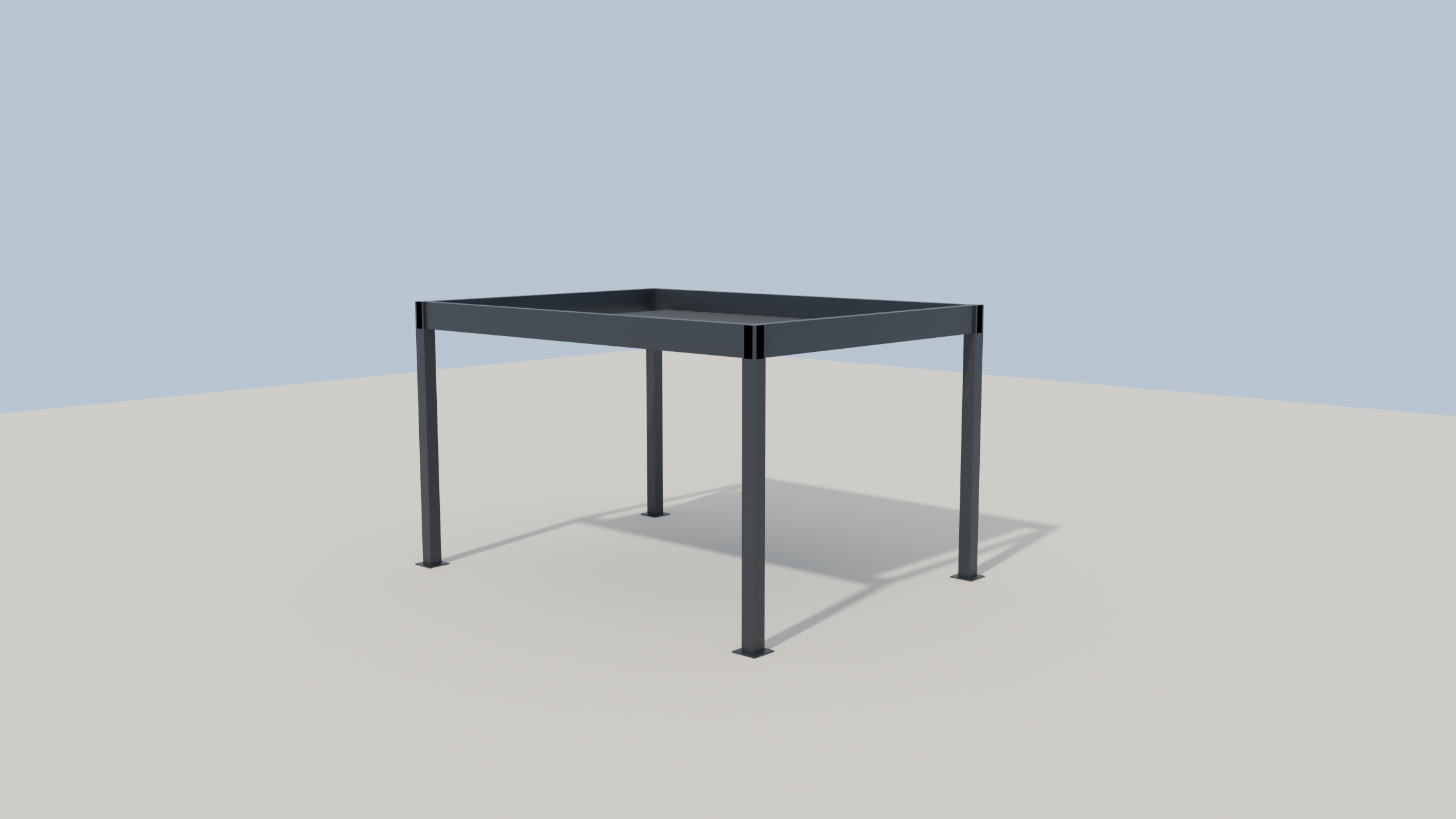

Bioclimatic Pergola
Motorised bioclimatic louvre roof. Documented for European project requirements. Built to last 25 years.
KEY FEATURES
BIOCLIMATIC LOUVRES
Motorised, rotate up to 115° for sun, shade & ventilation
RAINPROOF
Closed-position waterproof + concealed gutter drainage
POWDER-COATED ALUMINIUM
QUALICOAT Class 2 powder coat, RAL 7016 default · any RAL on request
SMART HOME
radio gateway · voice control · KNX
STRUCTURAL
EN 1991-1-3 snow · EN 1991-1-4 wind route, checked by project
TECHNICAL DATASHEET
Luxa Sereno 700
01 · SYSTEM LAYOUT

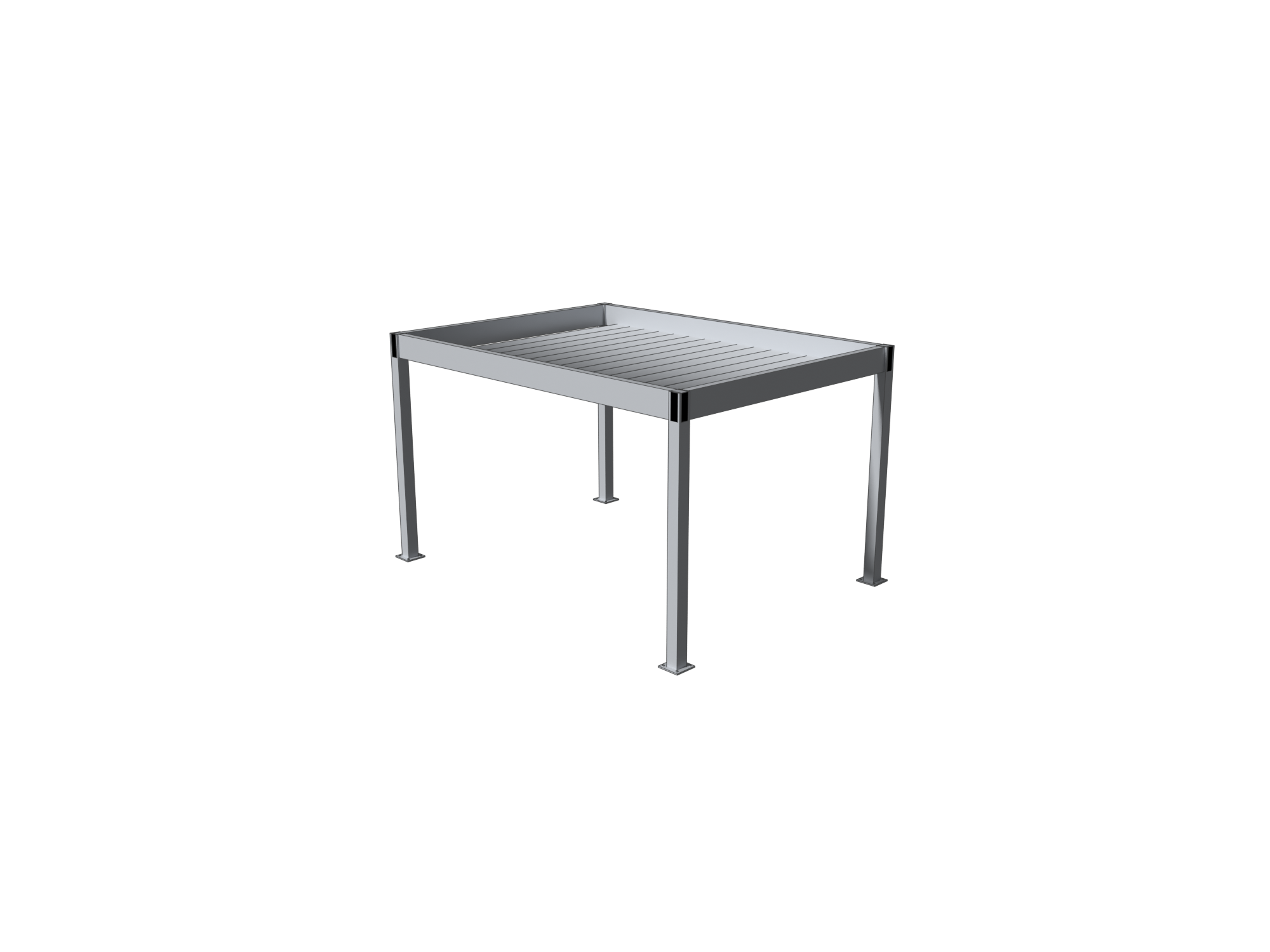

System layout
Standard 4-leg single module — A1..A4 columns, B1/B2 long carrier beams, C1/C2 short beams. Six standard sizes; coupling supported.
FIG. 01 · STANDARD MODULE
PONARC parametric model · Freestyle line-art
02 · STANDARD MODULE SIZES
Standard module sizes
| SIZE (W × P) | AREA | CONFIGURATION |
|---|---|---|
| 3 × 3 m | 9 m² | Single — 4 columns |
| 3 × 4 m | 12 m² | Single — 4 columns |
| 3 × 5 m | 15 m² | Single — 4 columns |
| 4 × 4 m | 16 m² | Single — 4 columns |
| 4 × 5 m | 20 m² | Single — 4 columns |
| 4 × 6 m | 24 m² | Single — 4 columns |
Maximum single-span 4.0 m. Larger areas: side-by-side or L-coupled with shared intermediate columns.
TECHNICAL DATASHEET
Luxa Sereno 700
03 · TECHNICAL SPECIFICATIONS
Technical specifications
| Material | EN AW-6063-T5 aluminium · 98% recyclable |
| Surface finish | QUALICOAT Class 2 powder coat · any RAL colour |
| Default colour | RAL 7016 anthracite grey |
| Louvre rotation | Up to 115° |
| Maximum single-span | 4.0 m |
| Snow load | Checked by project (EN 1991-1-3 route) |
| Wind load | Tested per EN 1991-1-4 |
| Drainage | Concealed in carrier beams + columns |
| Motor | RF tubular motor (50 Nm) |
| Smart home | Gateway · voice control · KNX |
| IP rating (motor + electronics) | IP44 |
| Service life | ≥ 25 years (frame and finish) |
04 · STANDARDS & CERTIFICATIONS
Standards & certifications
- ·EN 1991-1-1 · Densities, self-weight, imposed loads
- ·EN 1991-1-3 · Snow loads
- ·EN 1991-1-4 · Wind actions
- ·EN 1090-3 · Execution of aluminium structures
- ·EN 12020-2 · Aluminium extrusion tolerances
- ·EN 13501-1 · Fire classification (EPDM seals)
- ·EN AW-6063-T5 · Aluminium alloy / temper
- ·ISO 9001 · Manufacturer quality management
05 · WARRANTY SUMMARY
Warranty summary
10 years on aluminium frame · 5 years on QUALICOAT powder coat · 5 years on motorised drive. Conditions: install within 12 months of delivery, follow installation manual, validate wind/snow assumptions by project.
06 · ORDER & SUPPORT
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
