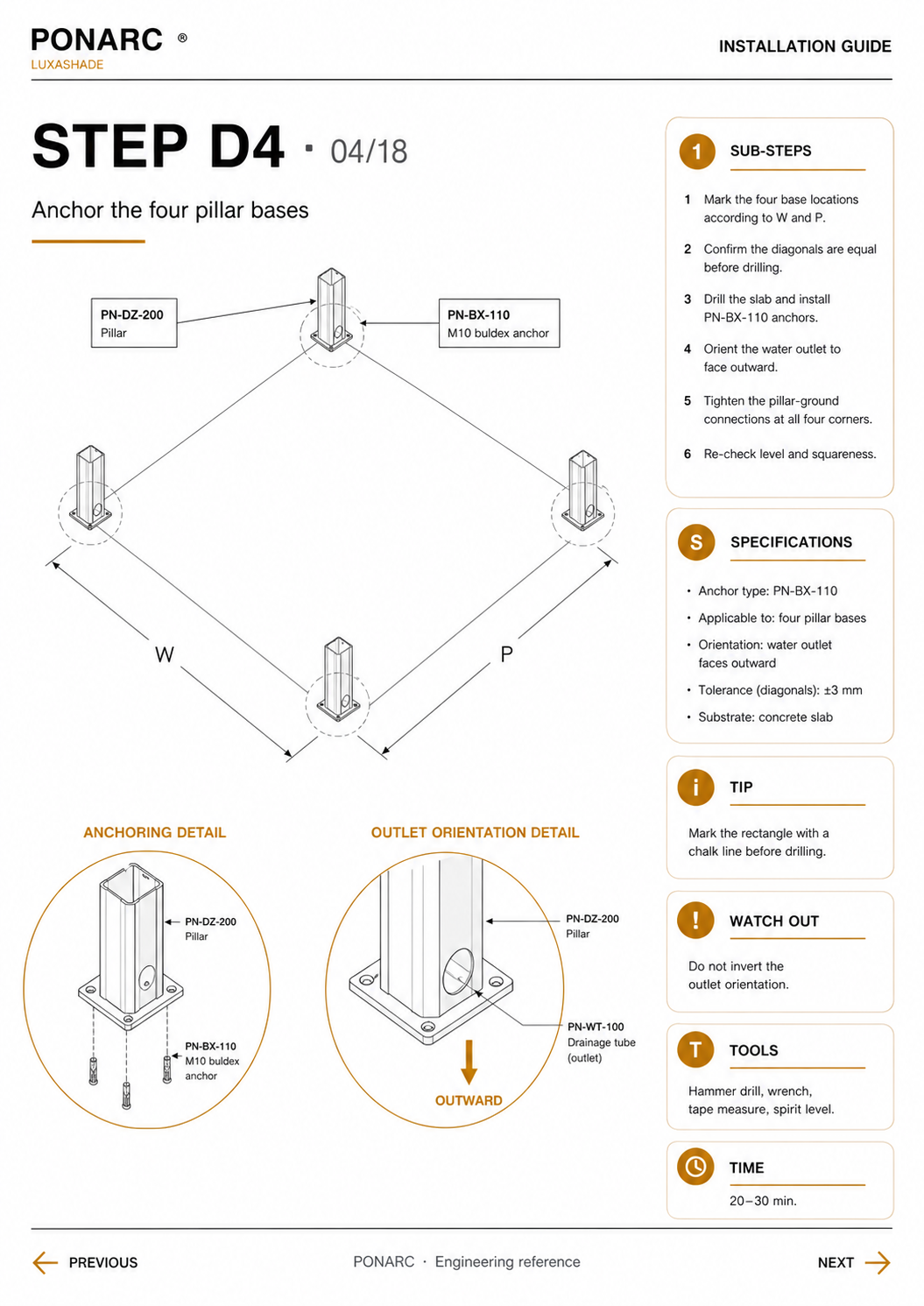

Anchor the four pillar bases

About step 4 of the Luxa Aperio 800 installation

Anchor the four pillar bases · FRAME · 18 step · Luxa Aperio 800 (motorised retractable louvre roof)

Anchor the pillar baseplates to the slab — M10 buldex wedge anchors, water outlet outward.
