MOUNT · STEP D7 · 07 OF 10
07

Lift the long-side frames onto the foot stubs

Lift the long-side frames onto the foot stubs — two installers per side.

Lift the long-side frames onto the foot stubs — illustration

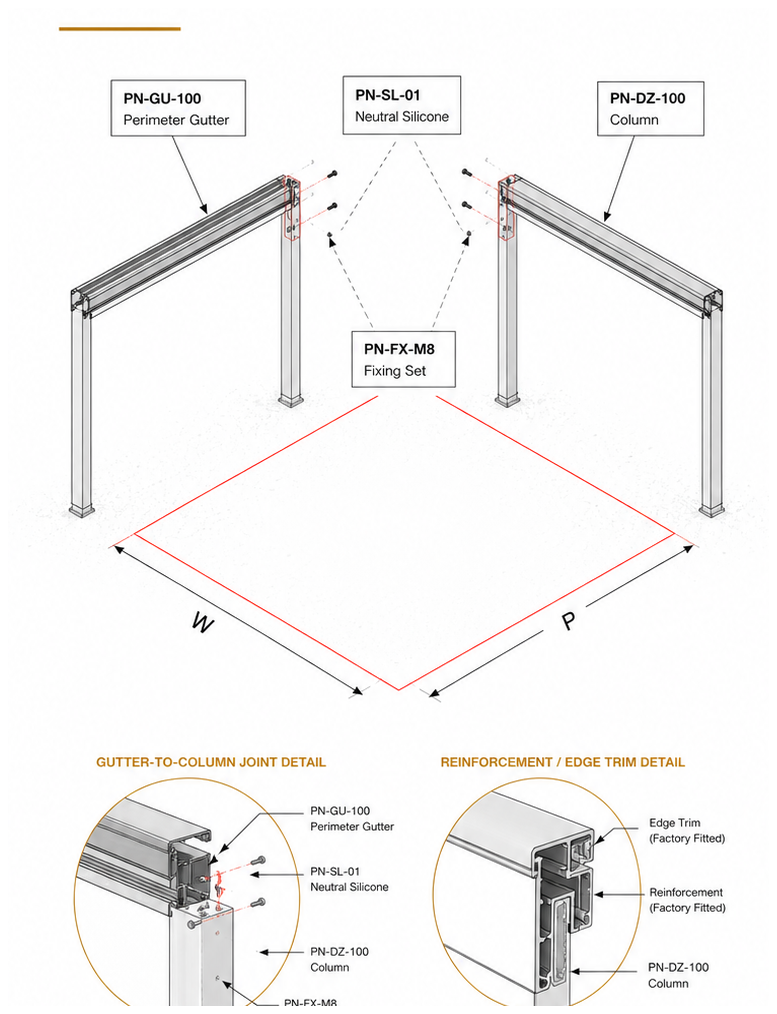

Fig. 07 — Lift the long-side frames onto the foot stubs

SUB-STEPS

  1. 1Lift assembled long side frames into position.
  2. 2Position columns over the foot plates.
  3. 3Lower columns vertically onto the plates.
  4. 4Insert base fasteners and run down finger-tight.
  5. 5Check columns are plumb.
  6. 6Confirm long side assembly is stable.

SPECIFICATIONS

  • Column: PN-DZ-100
  • Long gutter: PN-GU-100
  • Fastener: PN-FX-M8
  • Plumb tolerance: ±2 mm / m
  • Install team: 2 installers

TIP

Use temporary support to keep both side assemblies upright.

WATCH OUT

Do not fully torque base fasteners until frame is closed.

TOOLS

Soft sling, spirit level, torque wrench

TIME

17 min

About step 7 of the Luxa Riparo Pura Carport installation

Lift the long-side frames onto the foot stubs · MOUNT · 10 step · Luxa Riparo Pura Carport (free-standing aluminium carport)

Lift the long-side frames onto the foot stubs — two installers per side.
