SUB-STEPS
- 1Cut PN-GU-100 to required length.
- 2Slide guide teeth into screw channels.
- 3Confirm inserts are fully seated.
- 4Check PN-EU-100 reinforcement orientation.
- 5Check PN-EU-101 edge trim orientation.
- 6Prepare B-1 and B-2 identically.
FRAME
·
STEP D3 · 03 OF 10
03
Cut the long gutters as a matched pair

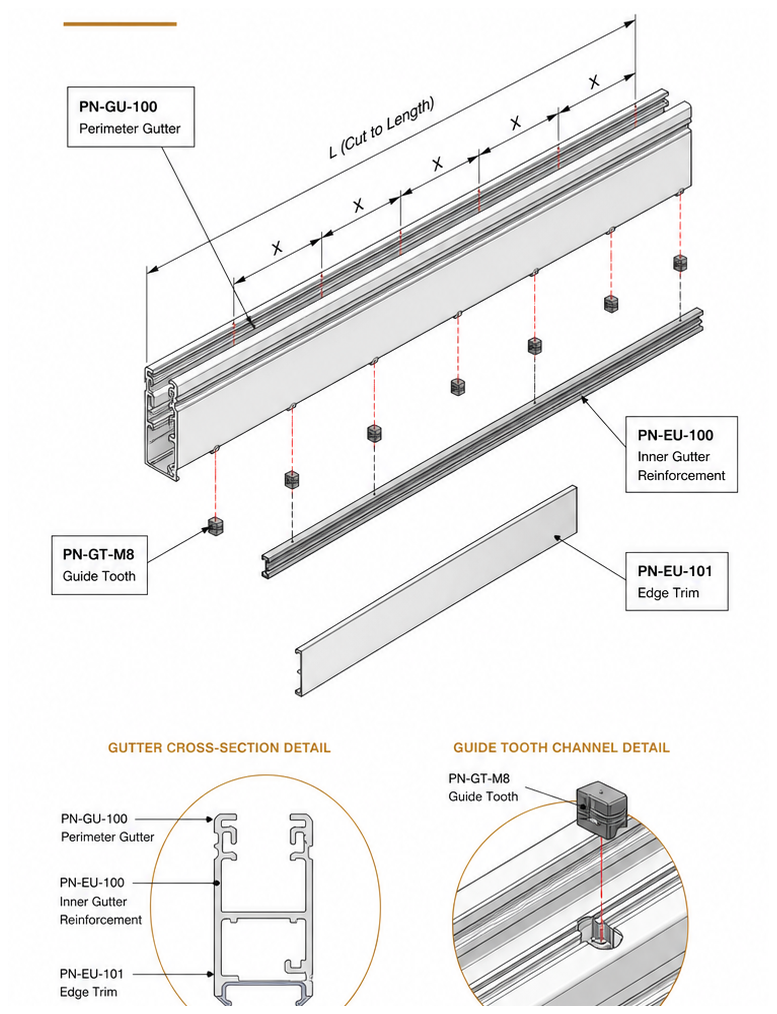

Cut both long gutters from the same extrusion as a matched pair.
SPECIFICATIONS
- Gutter: PN-GU-100
- Reinforcement: PN-EU-100
- Edge trim: PN-EU-101
- Long members: B-1 and B-2
- Guide teeth: M8/M6 as required
TIP
Prepare both long gutters as a matched pair.
WATCH OUT
Incorrect insert spacing prevents later column connection.
TOOLS
Tape measure, marker, hex key
TIME
12 min
About step 3 of the Luxa Riparo Pura Carport installation
Cut the long gutters as a matched pair · FRAME · 10 step · Luxa Riparo Pura Carport (free-standing aluminium carport)
Cut both long gutters from the same extrusion as a matched pair.
